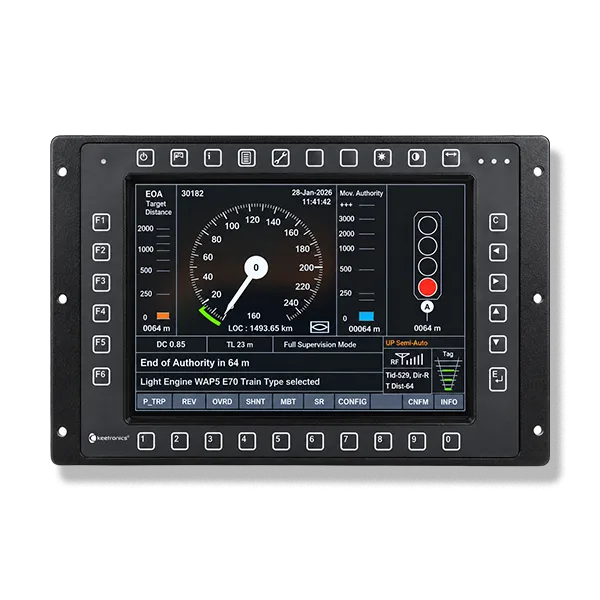

KIPL 26-6539
| Product Code | KIPL 26-6539 |
| Product Type | Fanless Railway Touch Panel PC |
| Application | Railway Driver Cabins & Railway Control Systems |
| Processor | Intel Atom® x5-E3940 |
| Processor Speed | Up to 1.8 GHz |
| Memory | 2 × DDR3L SO-DIMM, Max. 8 GB, Non-ECC |
| Display Size | 10.4 inches |
| Display Type | TFT LCD |
| Resolution | 1024 × 768 pixels (XGA) |
| Brightness | 1000 nits |
| Contrast Ratio | 1000:1 (Typical) |
| Touch Technology | Projected Capacitive (PCAP) Multi-Touch |
| Touch Surface Hardness | ≥ 6H |
| Keypad | Illuminated 32-key keypad |
| Keypad Layout | UIC 612-01 compliant |
| Keypad Interface | USB / UART / IIC |
| Brightness Adjustment | Automatic via built-in light sensor |
| Storage / Expansion | 1 × Full-size Mini PCIe; 1 × M.2 B-Key, Type 3042 |
| Ethernet | 2 × Intel® I210IT Gigabit LAN |
| USB | 2 × USB 2.0 via pin-header; 4 × USB 3.0 on board |
| Serial Interfaces | 1 × RS232/422/485, jumperless selection; 3 × RS232 |
| Audio | Intel® Atom® SoC HD Audio + Realtek ALC888SHD Codec with Class-D Speaker Amplifier |
| Operating System | Windows 10 / Linux |
| Power Connector | M12 A-coded 4-pin Male |
| Input Voltage | 24 V DC to 110 V DC |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 90% RH at <40°C, non-condensing |
| Shock & Vibration | Designed to meet MIL-STD-810F |
| Ingress Protection | IP65-rated front panel |
| Enclosure Material | Aluminum / Iron |
| Dimensions (W × H × D) | 310 × 214 × 50.74 mm |
| EMI / EMC | Designed to meet MIL-STD-461E/F |
| Safety | UL 62368 |
| Optional Touch | Resistive touchscreen / Tempered glass |
| Optional Expansion | Additional COM / CAN / DIO connections |
| Optional Cable Kit | HDMI Cable / Ethernet Cable / USB Cable |
