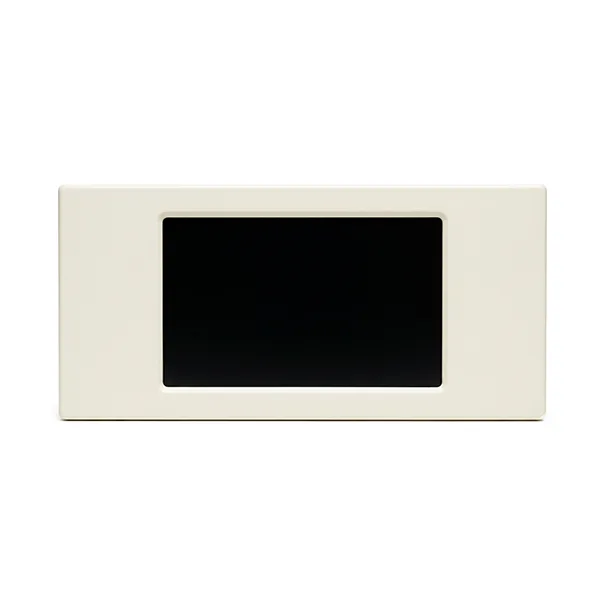

KIPL 25-6398NR
| Display Size | 3.96 Inch |
| Display Panel Type | IPS |
| Resolution | 480(H) × 800(V) Pixels |
| Display Interface | MIPI |
| Backlight | LED |
| Luminance | 400 cd/m² after bonding |
| Contrast Ratio | 800:1 |
| Aspect Ratio | 6:10 |
| Refresh Rate | 260 Hz |
| Viewing Angle | 170° / 170° |
| Colour Depth | 16.7M |
| Active Area | 51.84(W) × 86.40(L) mm |
| LED Life | 30,000 Hours (Typical) |
| Input Voltage | VDD = 2.8V; LED forward voltage = 24V @ typical 20mA |
| Overall Dimensions | 58.50(W) × 98.00(L) × 5.5(D) ±0.5 mm, approximately after bonding |
| Touch Type | Capacitive Touch |
| Touch Interface | I2C |
| Touch Driver IC | ILI2511 |
| Touch Input Support | Stylus and gloved finger operation |
| Touch Glass | 25H tempered glass, AG/AR strengthened glass |
| Optical Bonding | LCD + Touch Screen |
| EMI Mesh | EMI protective mesh with provision for 360-degree electrical grounding |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | >95% RH at +40°C |
| EMI/EMC | Designed to meet MIL-STD-461E/F |
| Front Panel Rating | IP23 |
