HMI ( Human Machine Interface ) Panels Manufacturers

A Human Machine Interface (HMI) panel is a user interface or dashboard—typically a digital touchscreen or display console—that connects a person to a machine, system, or industrial device. It allows operators to monitor processes, input commands, track performance metrics, and manage equipment in real time.

Core Functions

• Real-Time Monitoring: Displays operational data such as temperature, pressure, speed, and production counts.

• Control & Input: Lets operators start/stop machinery, adjust parameters, or change recipe settings via touch screens or physical push buttons.

• Alarm Management: Alerts users immediately to system faults, equipment failures, or safety risks.

• Data Visualization: Graphs historical performance, trends, and diagnostic logs to assist in preventative maintenance.

Common Applications & Components

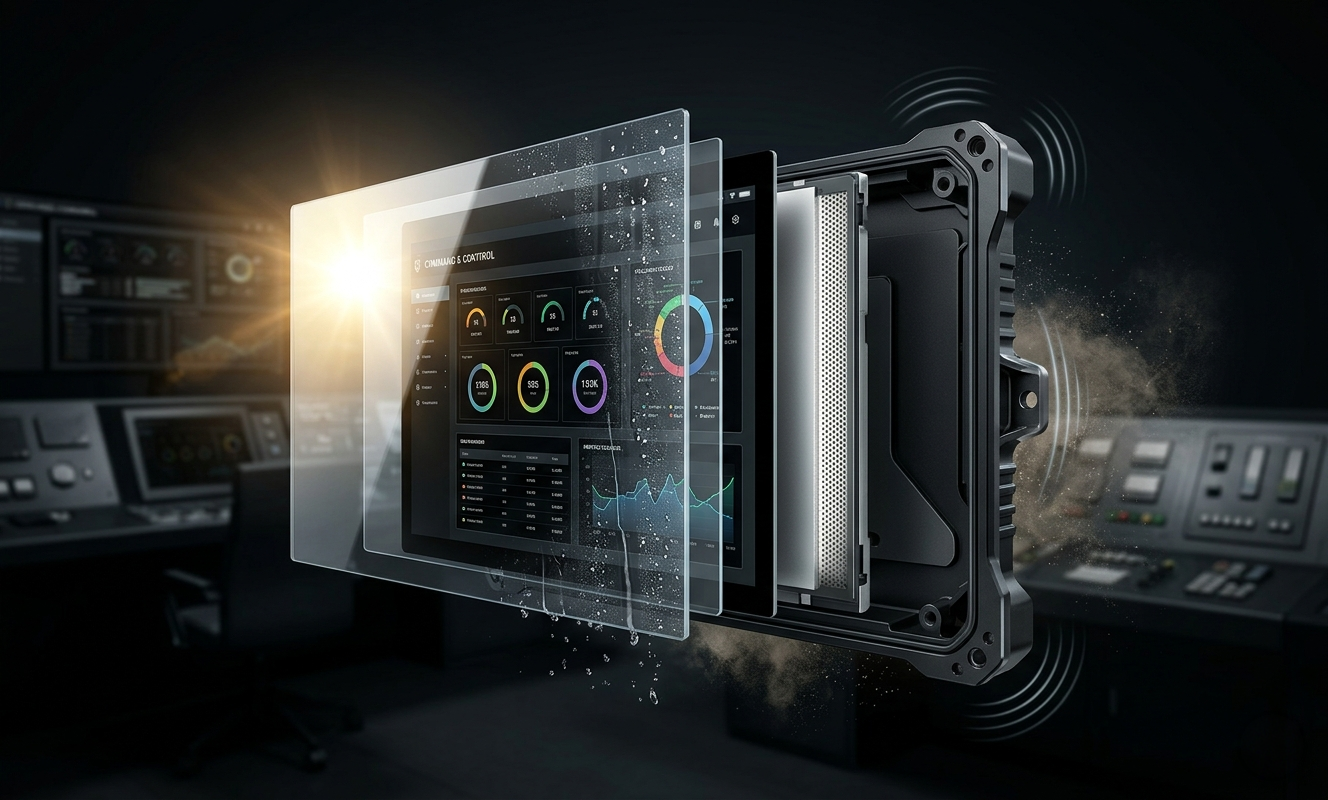

Manufacturing a Human-Machine Interface (HMI) panel involves integrating electronics, mechanical enclosures, optical displays, and custom software. Modern HMI panels are designed to withstand harsh industrial environments (dust, moisture, wide temperature ranges) while providing responsive touch feedback and clear visual displays.

Engineering & Circuit Board (PCB) Fabrication

• PCB Layout & Assembly: The process starts with Surface Mount Technology (SMT) pick-and-place machines to mount processors, communication controllers (Ethernet, RS-485, CAN bus), and power management chips onto multi-layer circuit boards.

• Reflow Soldering & Automated Optical Inspection (AOI): Boards pass through a reflow oven to solidify electrical connections, followed by AOI and in-circuit testing (ICT) to check for short circuits or component misalignments.

Display & Touch Sensor Integration

• Display Selection: Industrial-grade TFT LCD or OLED displays are chosen based on brightness, viewing angles, and thermal resistance.

• Touch Sensor Lamination: Capacitive or resistive touch panels are bonded to the display layer. Optical bonding (using clear resin) is frequently used to eliminate air gaps between the cover glass and LCD, reducing internal reflections and improving sunlight readability and shock resistance.

Front Overlay & Keypad Manufacturing

• Graphic Overlay Printing: Decorative cover glasses or durable polycarbonate/polyester overlays are screen-printed or digitally printed with custom branding, button graphics, and window cutouts.

• Sealing & Gasket Application: Integrated silicone keypads or membrane switches are fitted beneath the overlay. Environmental gaskets are added to achieve high Ingress Protection ratings (e.g., IP65, IP67, IP69K) against liquids and dust.

Enclosure & Mechanical Assembly

• Chassis Fabrication: Enclosures are typically CNC-machined from aluminum, die-cast, or molded from flame-retardant ABS/polycarbonate to handle industrial mechanical stress and dissipate heat.

• Final Hardware Assembly: The PCB, optical assembly, bezel, connectors, and power inputs are assembled inside the chassis, often secured with mechanical fasteners and thermal pads for passive cooling.

Firmware & Software Loading

• OS Flashing: Low-level bootloaders, operating systems (typically embedded Linux, Windows IoT, or RTOS), and display drivers are flashed onto the onboard flash memory.

• HMI Runtime Installation: The HMI graphical engine and communication stack for interfacing with PLCs (Programmable Logic Controllers) and SCADA systems are pre-installed.

Quality Control & Testing

• Burn-in & Thermal Cycling: Assembled units undergo stress testing in temperature chambers to detect early component failures.

• Functional & Environmental Testing: Panels are tested for touch responsiveness, communication port functionality, vibration resistance, electromagnetic compatibility (EMC/EMI), and water ingress protection.

Keetronics ( India ) Pvt. Ltd. is a Pune-based manufacturer specializing in custom Human-Machine Interface (HMI) solutions, input devices, and display assemblies for defense, medical, aerospace, and industrial automation.

Keetronics ( India ) Pvt. Ltd. Core HMI Technologies & Product Offerings

• Touchscreen & Display Assemblies:

  • Projected Capacitive (PCAP) & 5-Wire Resistive Panels: Multi-touch displays engineered to operate reliably with heavy work gloves or liquid splashes.

  • Optical Bonding (OCA/OCR): Complete display lamination in Class 100 cleanrooms, eliminating internal air gaps to prevent fogging, boost high-ambient light contrast, and enhance impact resistance.

  • Ruggedized Display Options: Sunlight-readable high-brightness displays (up to 1500 nits), thick cover glass up to 6mm (Mohs 7+ surface hardness, IK08/IK10 ratings), and optional Night Vision (NVIS) filtering.

• Input Keypads & Touch Interfaces:

  • Membrane & Capacitive Keyboards: Custom-printed, fully sealed graphic overlays built for chemical and dirt resistance.

  • Touchmatik & Smart Panels: Custom capacitive touch switches integrated into glass or acrylic surfaces.

  • Vandal-Proof & Metal Keypads: Heavy-duty, long-travel, and short-travel metallic interfaces built for outdoor kiosks or severe industrial use.

• Embedded Hardware & Communication:

  • Multi-Protocol Interfaces: Native USB-HID plug-and-play support along with low-latency serial buses (I2C, SPI, RS-232, Modbus/CANopen bridge options).

  • EMI/ESD Noise Shielding: Integrated copper mesh shielding and high-noise-rejection touch controllers (e.g., EETI, ILITEK) for error-free operation near heavy industrial motors.
