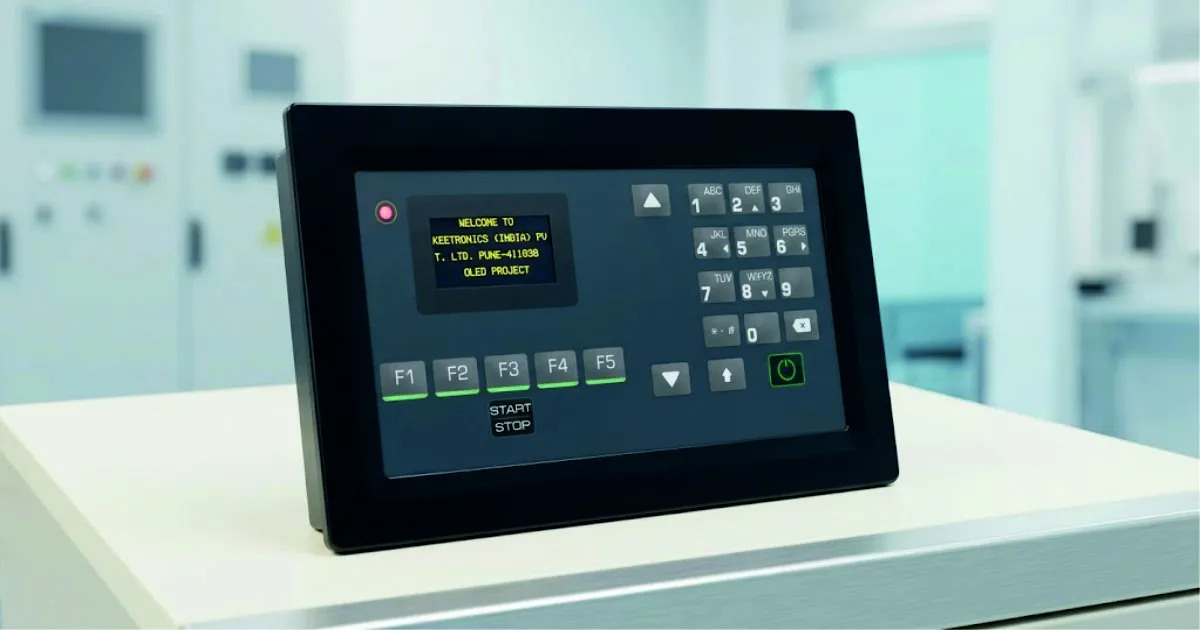

HEAVY DUTY INDUSTRIAL HMI PANEL

A Heavy-Duty Industrial HMI (Human-Machine Interface) Panel is a ruggedized operator console or terminal designed to act as the primary visual interface between a human operator and industrial machinery.

Unlike consumer tablets or standard office computer screens, heavy-duty HMI panels are engineered specifically to survive and operate continuously in the most brutal, demanding, and hazardous environments on Earth.

To be classified as "heavy-duty," these panels incorporate specific mechanical, electrical, and thermal protections:

1. Ruggedized Enclosures and High Ingress Protection (IP)

·         IP Ratings: They usually hold IP65, IP66, or IP67 ratings, meaning they are completely dust-tight and can survive powerful water jets or temporary submersion (essential for washdown environments in food processing).

·         Chassis Materials: Built with corrosion-resistant, robust materials like stainless steel, marine-grade aluminum, or thick die-cast alloys to survive impacts and chemical exposure.

2. Extreme Temperature Tolerance

·         Standard electronics fail if it gets too cold or hot. Heavy-duty panels utilize industrial-grade components and fanless convection cooling to operate seamlessly across extreme temperature ranges—frequently from $-40^\circ\text{C}$ to $70^\circ\text{C}$ ($-40^\circ\text{F}$ to $158^\circ\text{F}$).

3. Vibration & Shock Resistance

·         Continuous mechanical shaking can easily snap circuit boards or disconnect internal cabling. Heavy-duty HMIs feature soldered-on processors and RAM, vibration-resistant cable lock systems (such as M12 connectors), and solid-state storage (SSDs or eMMC) with no moving parts.

4. Sunlight-Readable & Toughened Touchscreens

·         High Brightness: Standard screens wash out under daylight. Heavy-duty outdoor screens feature ultra-bright backlights (1,000 to 1,200 nits) and optical bonding to remain perfectly legible in direct sunlight.

·         Glove-Compatible Touch: They feature highly durable capacitive or resistive touch screens (often IK08 impact-rated glass) designed to respond accurately even when the operator is wearing heavy work gloves or when water splashes across the screen.

5. Hazardous Area Certifications

·         In environments with explosive gases or dust (like oil rigs or grain silos), standard electrical arcs can trigger an explosion. Heavy-duty HMIs carry specialized safety certifications like Class I Division 2 (C1D2), ATEX Zone 2, or IECEx to guarantee they will not spark an explosion.

Heavy-Duty Industrial HMI (Human-Machine Interface) Panel are critical control hubs across several heavy industries:

·         Oil, Gas, & Mining: Positioned directly on drilling rigs and mining trucks to monitor pressure, depth, and system diagnostics.

·         Marine & Maritime: Installed on ship decks and open cockpits, resisting constant exposure to salt water and ocean humidity.

·         Manufacturing & Food Processing: Mounted directly to assembly line machines where hot chemical washdowns occur daily to keep conditions sanitary.

·         Agriculture & Construction: Built into the cabins of tractors, excavators, and harvesters, enduring constant vibration, dust, and outdoor sunlight.

Keetronics (India) Pvt. Ltd. is a pioneering Indian manufacturing company specializing in advanced electronics, custom Human-Machine Interface (HMI) solutions, and input devices. Established in 1994, the company has over 32 years of industry experience and has completed more than 7,000 projects globally.

Keetronics designs, develops, and manufactures high-quality custom interfaces and automation hardware, including:

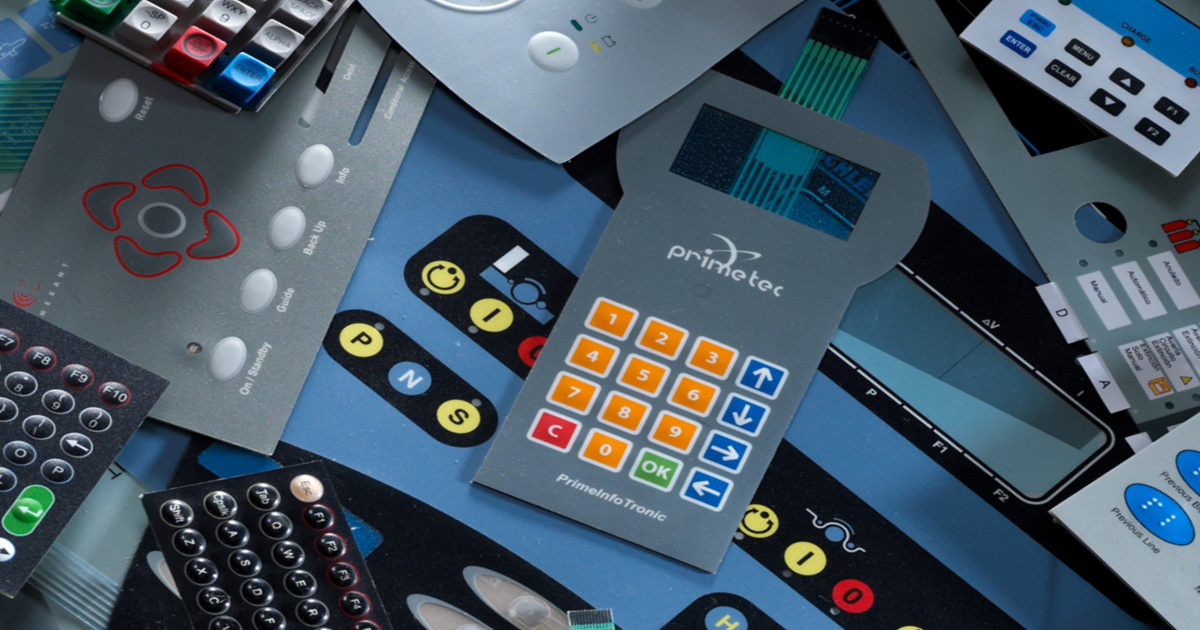

• Industrial Input Devices: PCB & PCF membrane switches, rugged customized computer keyboards, and metallic industrial keyboards.
• HMI & Displays: Customized rugged industrial touch displays and HMI solutions tailored for harsh environments.
• Smart Automation: Smart touch switches for homes, offices, and hotels, alongside custom embedded solutions.
• Specialized Industries: High-reliability input devices engineered specifically for defense, military, aerospace, medical, and marine applications.

Keetronics designs, develops, and manufactures high-quality Heavy-Duty Industrial HMI (Human-Machine Interface) Panel
