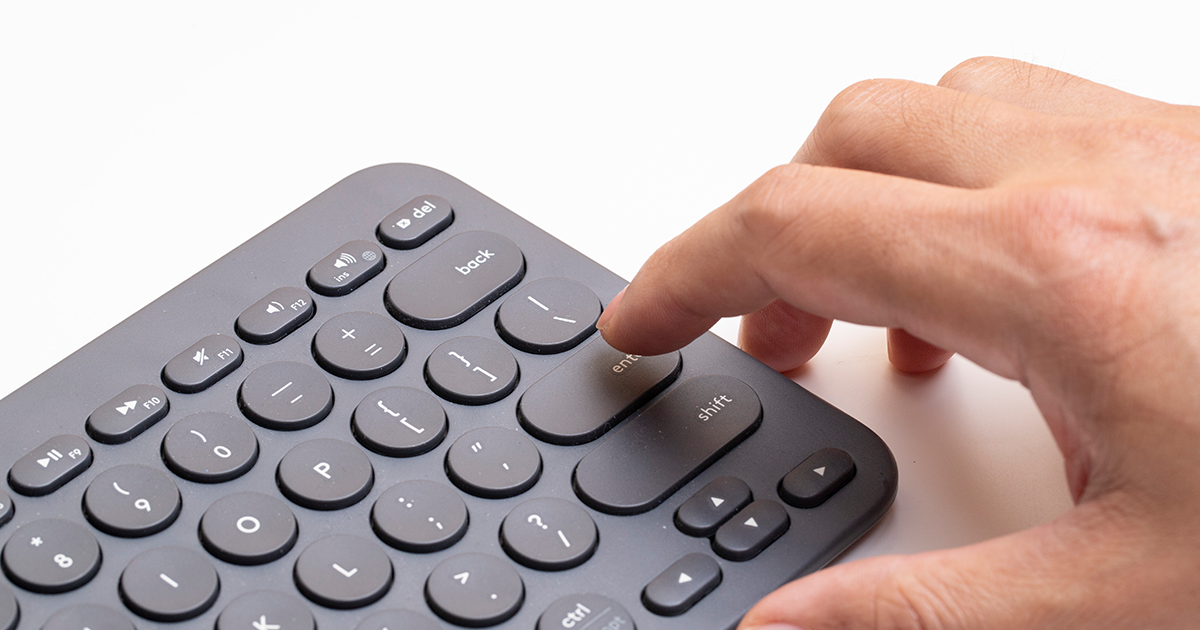

A capacitive keyboard is a specialized type of keyboard that registers keystrokes using changes in electrical capacitance rather than physical mechanical switches. Because they are contactless, they provide a smooth, ul...
CAPACITIVE TOUCH SWITCHES, KEYBOARDS AND PANELS
Capacitive sensing switch is a technology based on capacitive coupling which takes input as human body capacitance. This technology is used in keyboards also known by the name Capacitve Touch keyboard, capacitive sensing keyboard and feather touch Keys. These are capacitive sensors which use a change of capacitance on the capacitor pad.
The working of capacitive switch keyboard is similar to that of a typical touch screen smartphone. When we touch the screen, a small electrical charge is transferred from our body to this switch. This causes a change in the capacitance. The switch then detects this change and responds with an appropriate command.
Backlighting on the glass provides capacitive sensing keyboards a beautiful and aesthetically appealing appearance with strong graphic clarity. Capacitive touch control switches do not require the user to touch the metal directly as a printed glass is placed on the PCB which can eliminate potential safety hazard. As it has no mechanical components, it doesn’t wear out easily and has a long lifespan. Capsense keyboard can be used where hand-hygiene is important as these keyboards are also easy to clean using disinfectants and thus reduces the risk of cross contamination.
How Capacitive Keyboards Work
Instead of closing a physical metal circuit, these keyboards operate by emitting a continuous, faint electrical field beneath each key.
No Physical Contact: When you press down, a plunger or conical spring alters the capacitance of the sensor underneath.
The Keystroke: The keyboard's printed circuit board (PCB) detects this change in capacitance and registers the key press almost instantly.
No Debounce Delay: Since there are no physical metal contacts that bounce and cause repeated inputs, they are incredibly fast and accurate.
Capacitive keyboards fall into two distinct design styles:
1. Electro-Capacitive Typing Boards (Premium & Enthusiast) Often utilizing technologies like Topre switches, these act as a hybrid between mechanical and membrane boards. They feature a rubber dome over a spring and a capacitive sensor, resulting in a distinctively "pillowy" or "thocky" tactility that is highly praised by programmers and touch-typists.

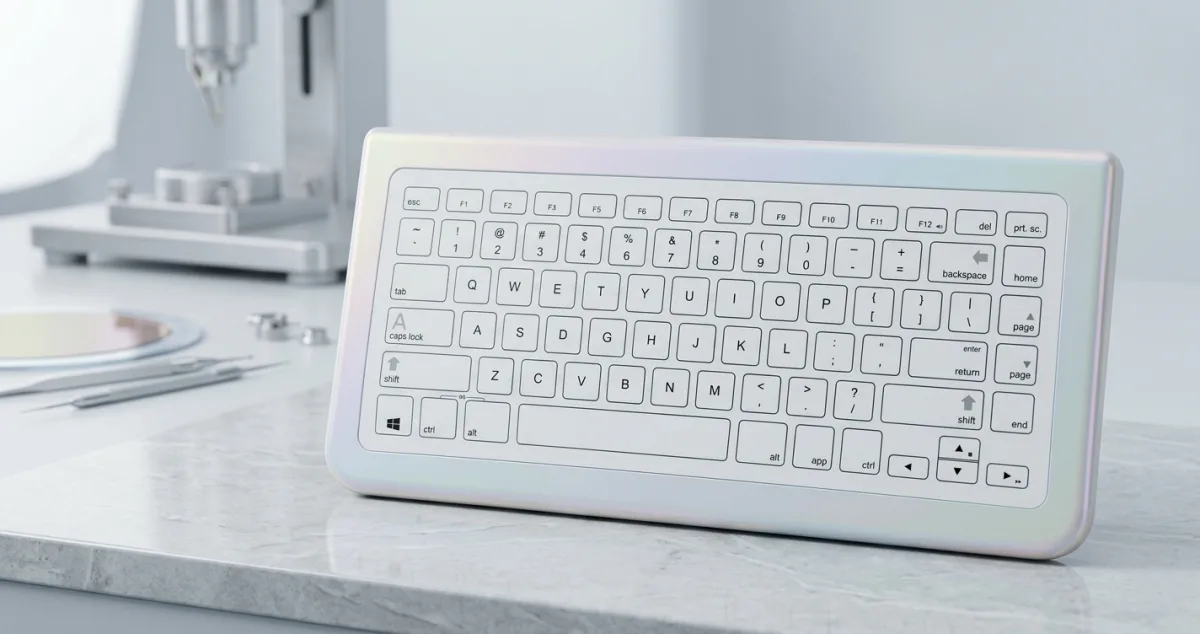

2. Flat-Surface "Feather-Touch" Boards (Industrial & Consumer)These feature a smooth, completely flat exterior (often made of glass or plastic)
where you simply rest your finger over the key graphic.
Ideal uses: Smart home control panels, high-end medical devices, premium ATMs, and sterile environments. They are completely sealed against spills and dust.
