Custom Membrane Keypad

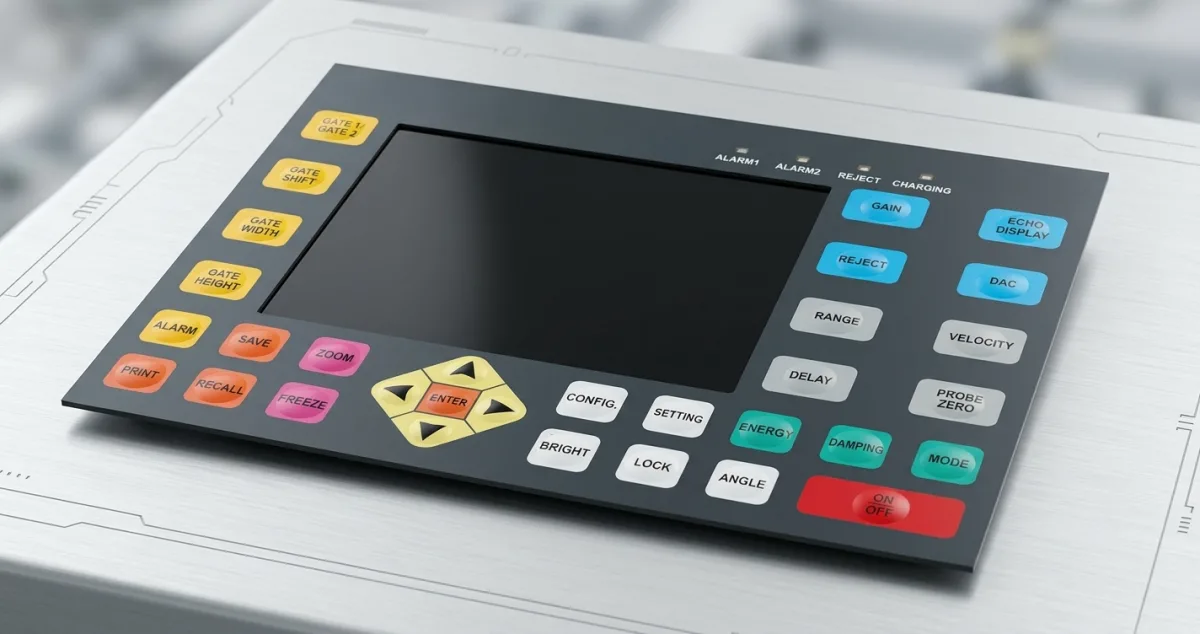

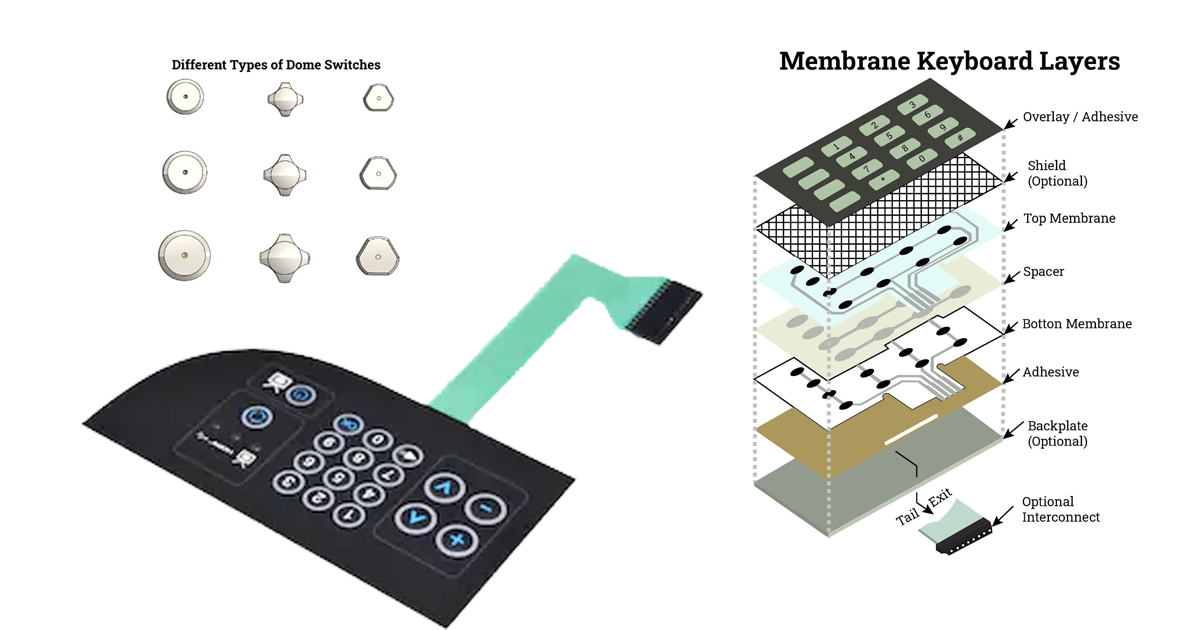

Anatomy of a Membrane Keypad

A standard custom membrane keypad is an ultra-thin sandwich typically made of six distinct layers:

• Graphic Overlay: The outermost visual layer (usually polyester or polycarbonate). This features the printed text, colors, logos, and button outlines. It can include clear windows for LCD/LED displays.

• Overlay Adhesive: A strong adhesive layer that bonds the graphic overlay to the upper circuit layer.

• Upper Circuit Layer: A flexible film printed with conductive silver or copper inks that form half of the switch circuit. (Alternatively, metal domes are placed here for a "clicky" feel).

• Circuit Spacer: An insulating layer with cutouts where the keys are located. It keeps the upper and lower circuits apart until a button is pressed.

• Lower Circuit Layer: The matching circuit layer that completes the switch pathway when the upper layer is pressed down through the spacer cutout.

• Rear Adhesive: The final bottom layer used to permanently stick the entire keypad assembly onto the product’s rigid housing or enclosure.

Key Customization Options

When designing a custom membrane keypad, manufacturers can tailor almost every aspect to fit a specific product's requirements:

• Tactile vs. Non-Tactile: * Tactile: Incorporates metal domes or embossed plastic under the overlay to give users a physical, "snappy" feedback click when pressed.

  • Non-Tactile: Perfectly flat and silent. Users rely on audible beeps or visual cues from the machine to know a keypress was registered.

• Shielding (EMI/RFI): Keypads used in critical environments (like hospitals or aerospace) can be lined with a layer of aluminum foil or conductive grid to block electromagnetic interference.

• Integrated Lighting: Embedded surface-mount (SMD) LEDs or fiber optics can be integrated directly inside the thin layers to back-light specific keys, indicators, or logos.

• Environmental Sealing: Because the top graphic overlay is one continuous sheet, custom membrane keypads can easily be designed to meet IP67 or IP68 standards, making them completely waterproof, dustproof, and chemical-resistant.

Where are they used?

Because they can survive harsh wipe-downs and heavy usage, they are widely used in specialized equipment:

• Medical Equipment: Hospital beds, heart monitors, and lab analyzers where sterility and easy cleaning are vital.

• Industrial Controls: CNC machinery, manufacturing dashboards, and outdoor fuel dispensers that handle extreme weather and dirt.

• Household Appliances: Microwaves, dishwashers, and washing machine control panels.

Keetronics ( India ) Pvt. Ltd., a leading custom membrane keypad manufacturers in India, is offering the best quality of membrane keypads that act as an interface between humans and machines. These are made with high-quality polyester (PET) and polycarbonate (PC) and have an individual switch or a key where the pressure has been applied with pads with printed circuits to register keystrokes.

Due to its flexibility and easy-to-fit nature, these can be applied in many types of applications, such as consumer electronics, industrial automation and medical equipment’s’. Let’s check out its multiple types, features and applications one by one!

We are the top best custom membrane switch manufacturers and suppliers in India and offer multiple types for improving productivity. Here we have mentioned some types below:

• Tactile membrane keypads: These keypads are commonly used and have a metal dome inside for effective pressing or handling of physical keypads. The overlay letters or symbols are printed with silver or carbon for identification. These are made up of stainless steel, polydome and hydro form domed for effective handling.
• Non-Tactile Membrane Keypads: These are flexible membrane switch keypads and are used for low noise. Any physical conductor is attached to the non-tactile membrane keypads, such as metal domes, and has a smooth operation. In a non-tactile switch, the bottom side of the overlay is printed out with conductive pads.
• Backlit Membrane Keypads: The use of backlit membrane keypads is increasing due to their high use in multiple applications, such as automotive, aerospace and military applications. These custom membrane keypads have LED lights that are connected to the bottom surface for use in low-light conditions and more visibility.
• Capacitive Membrane Keypads: These are our new technological custom membrane switch prototype, which is touch-sensitive and uses capacitive sensing technology to activate when the user touches the sensor. These are highly applied in modern devices and can be operated with mechanical movement.

Here we have added a technical sheet for more clarification about our flexible membrane switch keypad:

To improve the overall productivity in industrial processes through our custom membrane keypads, we have included a high-quality of raw materials such as:

• Polyester (PET): These have higher durability and are commonly used in the top layer of flexible membrane switch keypads.
• Polycarbonate (PC): For a clear surface of printing, these materials are highly used due to their tough and clear surface.
• Adhesives: We have used high-quality adhesives such as 3M and Avery Dennison for perfect bonding of materials.
• Silver Ink: These are used in the circuit layers for conductive traces.
• Carbon Ink: It can be used for lower-cost conductive traces.
• LEDs: We have used high-quality LEDs in the backlit membrane keypads.

Being one of the best custom membrane keypad manufacturers in India, we have added multiple types of specification lists to our membrane keypads for greater performance. Here we have mentioned the following:

• Multi-Functional Integration: We have included multiple functions to improve the membrane keypads' performance. The integrated touchscreen option gives a new way of handling compared to traditional mechanical options and allows for touch-sensitive options. Also, we have included some haptic feedback systems and sensor proximity systems; the use vibration for the feel of pressing the mechanical button and sensors can be able to detect the user’s hand for activating the keypad or system.
• Durability Enhancements: Our all Membrane Keyboards custom membrane keypads are made with UV resistance and waterproof layers, which can overlay and protect the keypads from UV radiation and prevent any degradation to the internal graphics. The special coating also prevents any chemical or abrasion when the keypads come into contact with industrial uses such as solvents, oil and heavy uses. These can also be used in extreme temperatures, such as cold and higher heat.
• Connectivity and Integrity Options: These custom membrane switch prototypes are compatible with wireless connectivity and connected with Wi-Fi and Bluetooth and able to interface them. These can be particularly useful for remote-controlled devices. These are also able to connect with custom interface protocols such as ZIF and FFC for more compatibility or specific requirements.

Applications of our custom membrane keypad Manufacturer in India

Due to the multiple types of features added and the high qualities of material inside, our membrane keypads can be used in various applications, such as:
