Matrix Keyboards Manufacturers

When discussing a Matrix Keyboard, the term usually refers to one of two things: the underlying electronic technology used to build almost all keyboards, or a specific brand of premium gaming peripherals.

Here is a breakdown of what a matrix keyboard is in both contexts:

1. The Technology: What is a Keyboard Matrix?

In electronics, a keyboard matrix is a circuit design used to efficiently connect multiple keys to a microcontroller. Instead of running a separate wire from every single key to the microchip (which would require too many pins), the keys are arranged in a grid of Rows and Columns.

How it Works:

• If you have a standard 104-key keyboard, connecting each key individually would require 104 input pins.

• By using a matrix (for example, a grid of 16 rows and 8 columns), the microcontroller only needs 24 pins ($16 + 8$) to monitor all 104 keys.

• When you press a key, it completes a circuit bridging a specific row and a specific column. The keyboard's processor constantly scans these lines to detect which intersection is closed, figuring out exactly which key you pressed.

Common Types of Matrix Keyboards:

• Membrane Matrix: Found in standard office keyboards, microwave panels, and industrial equipment. They use flexible plastic sheets with printed conductive traces.

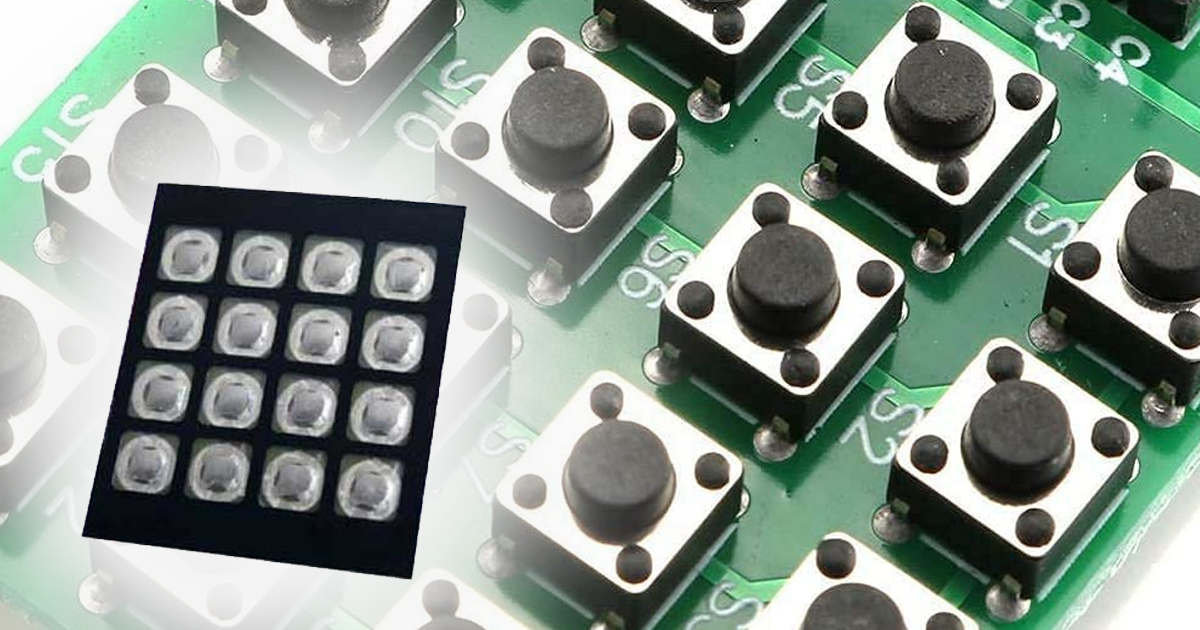

• Mechanical Matrix: Found in premium typing and gaming keyboards. The matrix is built directly onto a rigid fiberglass Printed Circuit Board (PCB) using mechanical switches.

2. Matrix Keyboards

If you are looking at retail consumer tech, Matrix Keyboards is a well-known brand that manufactures high-end mechanical gaming keyboards, custom keycaps, and desktop accessories.

They are popular in the esports and gaming communities for:

• Boutique Aesthetics: Offering unique, brightly colored, and themed keycap sets (like anime or retro themes).

• Form Factors: Specializing in smaller keyboard layouts like 60% keyboards, which remove the number pad and arrow keys to save desk space for gaming mice.

• Performance: Utilizing hot-swappable mechanical switches, RGB backlighting, and fast response times tailored for competitive gaming.

Keetronics India Private Limited is a highly prominent, specialized manufacturer of industrial input devices and Human-Machine Interfaces (HMIs). Based in Kothrud, Pune, Maharashtra, they are a primary B2B supplier of custom and standardized matrix keyboards engineered for harsh industrial environments rather than casual consumer computing.

An overview of their matrix keyboard profiles and tech offerings includes:

1. Product Profiles & Layouts

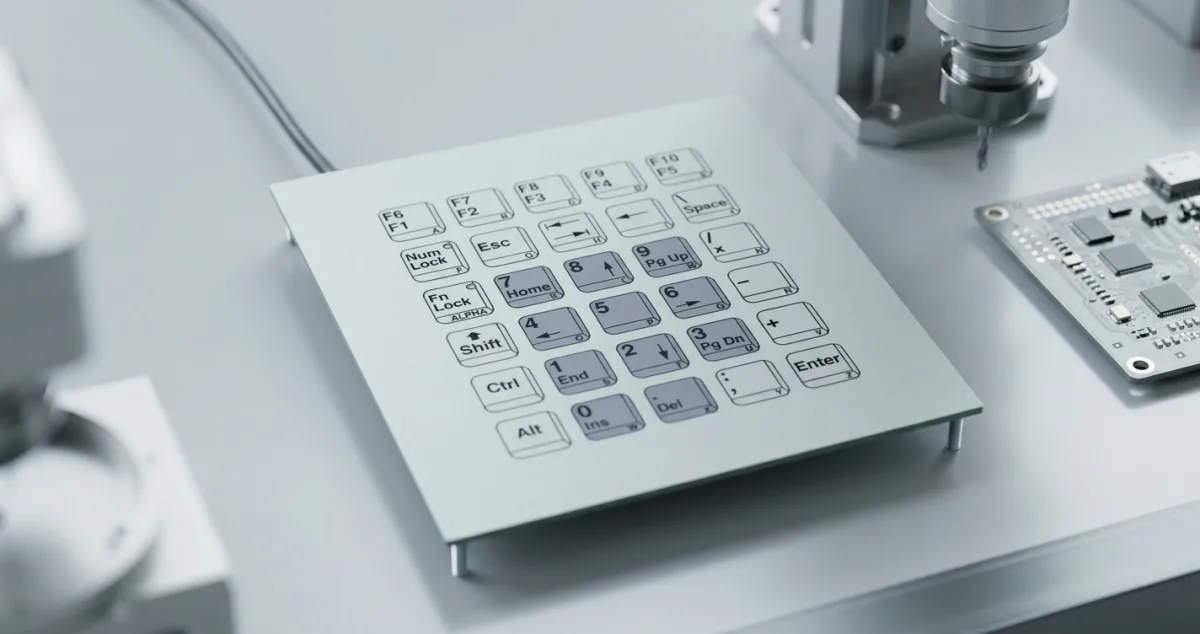

Keetronics designs off-the-shelf and bespoke grid arrays to simplify microcontroller connections for heavy-duty machinery. Some of their core matrix models include:

• 5 × 6 Matrix Industrial Keyboard (30 Keys): A highly compact, low-profile layout featuring gold-plated metal dome switches. It relies on an IP54-rated dust/moisture shield and is built for space-constrained operator consoles.

• 6 × 5 Matrix Industrial Keyboard with Touchmouse: A ruggedized engineering interface combining a 30-key grid layout with built-in cursor control. Protected by an industrial silicone rubber overlay, it features gold-plated contacts and tolerates extreme operating temperatures ranging from -30°C to +70°C.

2. Advanced Tech Offerings

Beyond traditional membrane and copper matrices, Keetronics manufactures cutting-edge physical layer tech:

• AI-Driven Edge Keyboards: HMIs integrated with an on-device, low-power Neural Processing Unit (NPU) providing 2.4 TOPS of local processing. These devices support continuous keystroke-dynamics biometrics (identifying operators by typing behavior), 3D touchless hover gestures up to 8cm away, and predictive circuit health diagnostics.

• User-Programmable Macro Keyboards: Point-of-Sale (POS) and command room terminal matrices equipped with onboard EEPROM. They store custom multi-layer macros and scan codes directly on the hardware, functioning without separate computer software drivers.

Industry Applications

Keetronics manufactures these matrix configurations specifically for sectors demanding extreme resilience, such as:

• Railways & Transit Systems

• Energy & Power Generation Sectors

• Medical Cleanrooms & Operating Theatres (using specialized antimicrobial overlays)

• CNC & Numerical Control Industrial Automation
