Military Grade Defense Keyboards

Military-grade (MIL-SPEC) defense keyboards are engineered to operate reliably in combat zones, mobile command units, naval vessels, and aerospace cockpits where commercial electronics would instantly fail.

1. Environmental & Structural Durability (MIL-STD-810)

Designed and tested to meet rigorous military standards (like MIL-STD-810G/H), these keyboards survive severe environmental stress:

• Extreme Temperatures: Operational ranges typically span from -30°C to +70°C (and even wider for storage).

• Shock & Vibration Resistance: Reinforced frames, aluminum machined enclosures (often with Surtec or powder coatings), and shock-absorbing mounts prevent damage from explosions, heavy gunfire, or the rough terrain experienced by armored vehicles.

• Corrosion & Chemical Protection: Built using marine-grade alloys, stainless steel, or specialized silicone to resist salt fog, humidity, sand, fungus, and exposure to harsh decontamination chemicals.

2. Advanced Sealing & Ingress Protection

• IP65 to IP68/IP69K Ratings: Total protection against dust ingress and high-pressure water jets, or complete submersion.

• Material Types: They generally utilize fully sealed silicone rubber, heavy-duty membrane panels, or vandal-proof stainless steel to prevent liquids or fine desert sand from breaching the electronics.

3. Tactical Backlighting & Operational Stealth

• NVIS (Night Vision Imaging System) Compliance: Meets MIL-STD-3009 rules. The backlighting utilizes specific wavelengths (often green, red, or amber) that allow operators to read keys while wearing Night Vision Goggles (NVGs) without causing blinding glare or "bloom."

• Blackout Controls: Features emergency "blackout" switches to instantly cut off all illumination to preserve tactical stealth in dark environments.

4. Electromagnetic Security (MIL-STD-461)

• EMI/RFI Shielding: Adheres to MIL-STD-461G, ensuring the keyboard does not emit electromagnetic interference that could expose a squad's position or disrupt vital tactical gear (like radios, jammers, or GNSS receivers). It also protects the keyboard itself from being jammed or fried by external electronic warfare.

5. Specialized Input & Integration

• Gloves-On Operation: Keys feature high actuation travel or heavy-force tactility (e.g., metal/polyester domes or carbon-on-gold contacts) so operators get clear physical feedback even when wearing thick combat gloves.

• Integrated Sealed Pointing Devices: To eliminate the need for a separate mouse, they embed rugged, sealed peripherals such as mechanical trackballs, low-profile touchpads, or ultra-rugged Force-Sensing Resistors (FSR / HulaPoint).

• Secure Connectors: Standard USB plugs are swapped out for circular, locking military-grade Amphenol or Glenair connectors to ensure cables don't snap loose during high-impact operations.

Keetronics (India) Pvt. Ltd. is a prominent manufacturer of advanced Human-Machine Interface (HMI) solutions, heavily specialized in producing rugged, industrial, and MIL-grade defense keyboards and keypads out of India.

They design custom input devices that strictly comply with defense requirements for aerospace, naval, and tactical land vehicles.

Notable Keetronics MIL-Grade Offerings

Keetronics manufactures specialized models engineered directly for defense deployments:

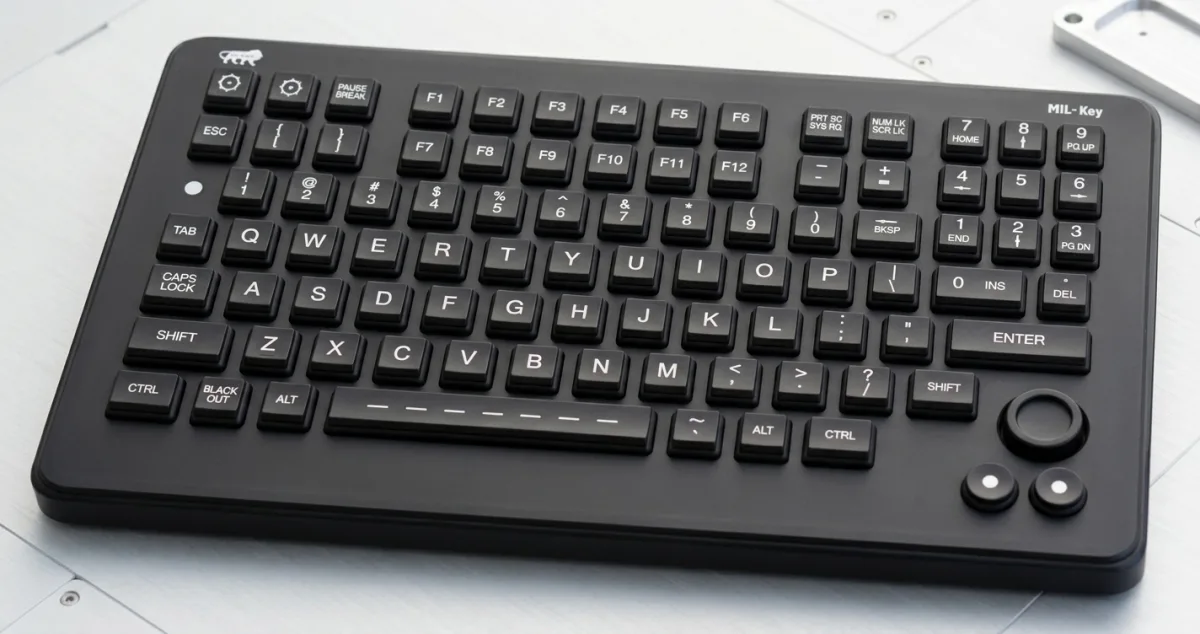

• MIL-Grade “Milkey” Backlit Keyboard (P/N: KIPL 24-6200): A fully submersed, compact defense keyboard.

  • Compliance & Protection: Rated IP68 and NEMA 4X (fully waterproof/submersible) and compliant with MIL-STD-461G for strict electromagnetic interference (EMI) shielding.

  • Tactical Features: Features adjustable green backlighting with optional NVIS (Night Vision Imaging System) Green B configuration so it doesn't blind operators wearing night-vision goggles.

  • Peripherals: Includes an integrated Interlink Electronics Force Sensing Resistor (FSR) pointing device for tight, space-constrained vehicle cabs.

• MIL KEY Rugged Backlit Keyboard with Touchpad (P/N: KIPL 25-6417): Another defense-standard layout that steps up the protection to an IP67-sealed chassis, featuring a high-precision integrated touchpad and hardened green backlighting for tactical operations.

• 92-Key Rugged Metal Keyboard with Trackball: Built using AL316 marine-grade stainless steel, this keyboard features a massive 50 mm IP65 trackball. It is fully sealed against salt, moisture, and corrosion, built to meet MIL-STD-461 E/F standards for naval vessel control stations.

• Tactile Defense Membrane Keypads: They build a vast line of custom modular keypads (e.g., 4-key, 7-key, and 11-key configurations with aluminum back support) engineered specifically for weapon systems, handheld field units, and communications equipment.

Technical Highlights of Keetronics Defense Tech

• Customization Specialists: Unlike some rigid mass manufacturers, Keetronics heavily designs custom matrixes, PCB-based metal dome configurations, and custom embossing for specialized military vehicles.

• ESD Safety: Enclosures utilize ESD-safe conductive plastics or ruggedized metals to prevent static discharge in ammunition-heavy or volatile environments.

• Extreme Survivability: Their defense line features silicone rubber or heavy-duty PBT keys tested to withstand a 2-meter drop onto concrete and rated for over 10 million keystrokes.
