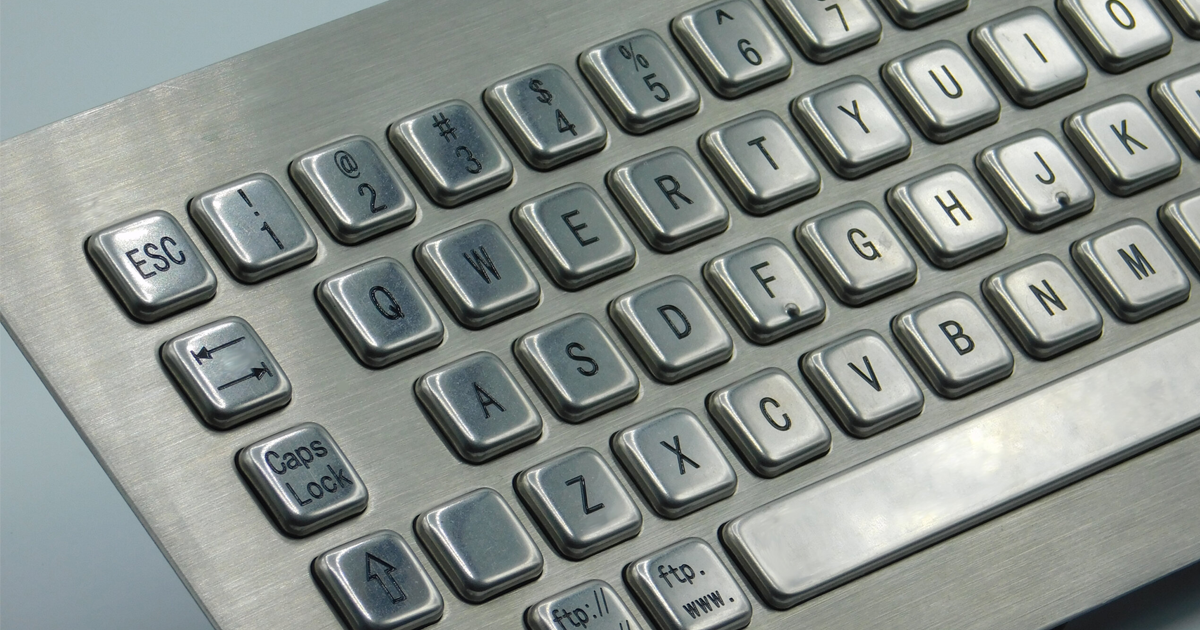

Vibration and bump-proof keyboards, also known as ruggedized keyboards, are built to withstand heavy shock, continuous mechanical vibrations (often up to 4G), and harsh environments. They utilize specialized components...
When looking for hardware capable of enduring the intense mechanical stress of vehicle-mount cabs, heavy machinery, or aerospace transport, standard keyboards will quickly fail due to solder cracks, circuit board flex, and key "chatter" (unwanted duplicate typing caused by shaking).
Industrial Human-Machine Interface (HMI) manufacturers like Keetronics build highly specialized Vibration & Bump Proof Keyboards designed precisely to survive these environments.
How Vibration & Bump-Proof Keyboards are Engineered
To handle continuous mechanical shock and movement, these rugged devices utilize an entirely different build philosophy than retail keyboards:
-
Vibration-Damping Grommet Mounts: Instead of being screwed tightly to a rigid frame, the internal Printed Circuit Board (PCB) floats on elastomer grommet isolators. These absorb low-amplitude mechanical harmonics before the kinetic energy can reach and snap critical solder joints.
-
Anti-Resonance Chassis Design: The metal or poly-composite casing is structurally engineered so its natural physical frequency does not align with standard industrial operating frequencies (such as engine idle or train track oscillations). This prevents the casing from magnifying the vibration.
-
Anti-Chatter Key Mechanisms: High-preload, gold-plated metal dome switches or flat conductive membranes ensure that the keyboard only registers deliberate presses. Intense rattling will not trigger accidental ghost inputs.
-
Captive Fasteners: Every external screw and bolt is thread-locked and captive-retained, guaranteeing that parts do not rattle completely loose and fall out over years of deployment.
-
Reinforced Cable Strain Reliefs: The USB or PS/2 connection points feature heavy-duty molded boots or locking connectors to stop wires from fraying or sliding out under constant movement.
Military and Industrial Compliance Standards
A true vibration and bump-proof keyboard will back its claims by meeting rigorous international engineering test suites:
| Standard | Test Type | What it Simulates |
| IEC 60068-2-6 | Sinusoidal Vibration | Continuous engine harmonic frequencies and motor hums. |
| IEC 60068-2-64 | Broadband Random | Shaking from transport rattling over uneven terrain or rough roads. |
| IEC 60068-2-29 (Test Eb) | Cumulative Bump Test | Severe impact survival (e.g., 1,000 continuous 10G bumps per axis), simulating heavy machinery impacts, rail joints, or cobblestone terrain. |
| MIL-STD-810H/G | Defense Environmental | High-altitude, tactical military transport, and extreme thermal shock tolerance (often paired with an operating range of -40°C to +70°C). |
Keetronics India Private Limited is primarily a manufacturer of advanced Human-Machine Interface (HMI) solutions, specialized input devices, and functional printed electronics.
While they are highly famous for industrial-grade keyboards, their broader business profile spans across four major product verticals:
1. Keyboards & Input Devices (Core Business)
Keetronics manufactures high-durability, rugged input panels engineered for extreme environments. Their lineup includes:
-
Membrane Keyboards: Tactile and non-tactile grid-matrix setups, including custom embossed types on PCB (Printed Circuit Board) and PCF (Printed Circuit Film) bases.
-
Military & Defense Keyboards: Their custom "Milkey" line consists of MIL-grade, IP68-rated waterproof, backlit panel-mount keyboards compatible with Night Vision Imaging Systems (NVIS).
-

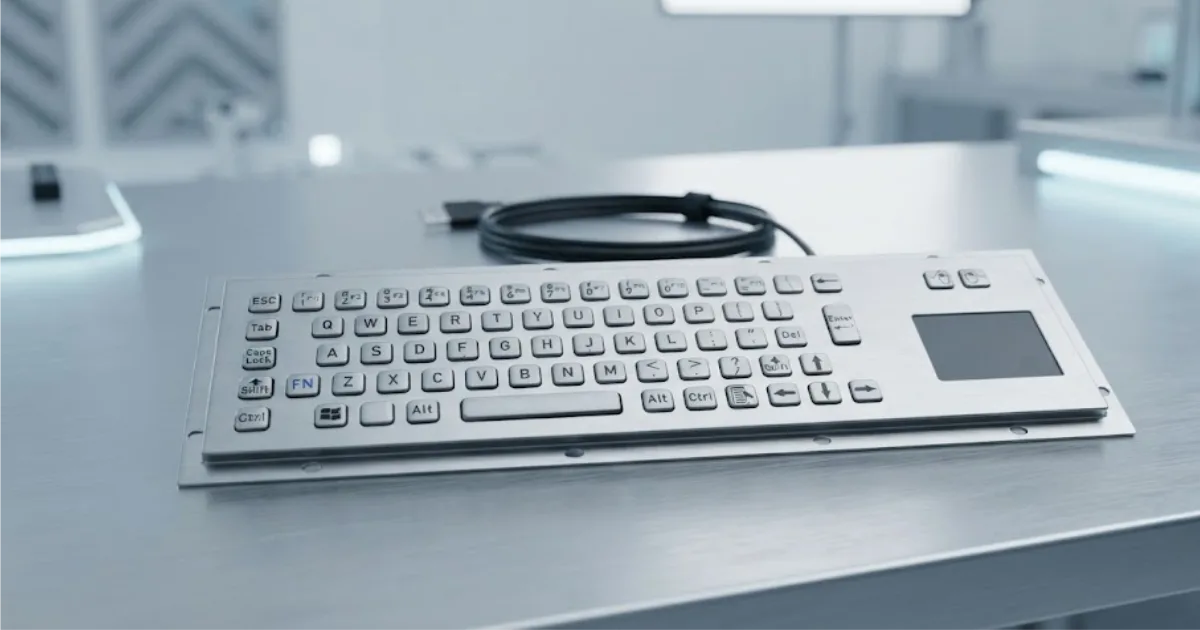

Industrial & Long-Travel Keyboards: Heavily protected computing interfaces built with scissor or mechanical switches (like Cherry keys) and integrated touchpads.
-
Capacitive & Piezo-Electric Keyboards: Vandal-proof, solid-state switches designed for outdoor kiosks, public interfaces, or cleanrooms where physical buttons could easily trap dirt or be damaged.
2. Smart Touch Controls & Automation
Under their home and office automation brand, Touchmatik, they manufacture luxury and rugged electrical touch plates:
-
Modular Touch Switches: High-end capacitive switch glass panels used to control lights, fans, dimmers, curtains, and AC units in smart homes, luxury hotels, and hospitals.
-
Smart Touch Panels: Human interface layouts that support touchless 3D hover gesture control and dynamic RGB backlighting.
3. Displays & Rugged Screen Solutions
They design and assemble visual interfaces tailored for harsh field deployments:
-
Rugged Display Panels: High-grade aluminum enclosures housing 3-to-27-inch LCD modules fortified with optical bonding (OCA/OCR) to resist moisture, extreme cold (using integrated heaters), and electromagnetic interference (EMI/ESD).
-
E-Paper Display Solutions: Ultra-low-power, sunlight-readable digital paper screens utilized for logistics tracking tags, smart warehouse labeling, and transit systems.
4. Functional Printed Electronics
Leveraging screen-printing technology and conductive inks, they manufacture ultra-thin, flexible electronics:
-
Printed Heaters & Circuits: Flexible heating elements and elastic stretchable ink printed layers.
-
Interactive Smart Packaging: Embedding touch-sensitive controls, ultra-thin LED lighting effects, and sound modules directly into cardboard boxes or interactive toy bodies to keep production costs and weight minimal.
