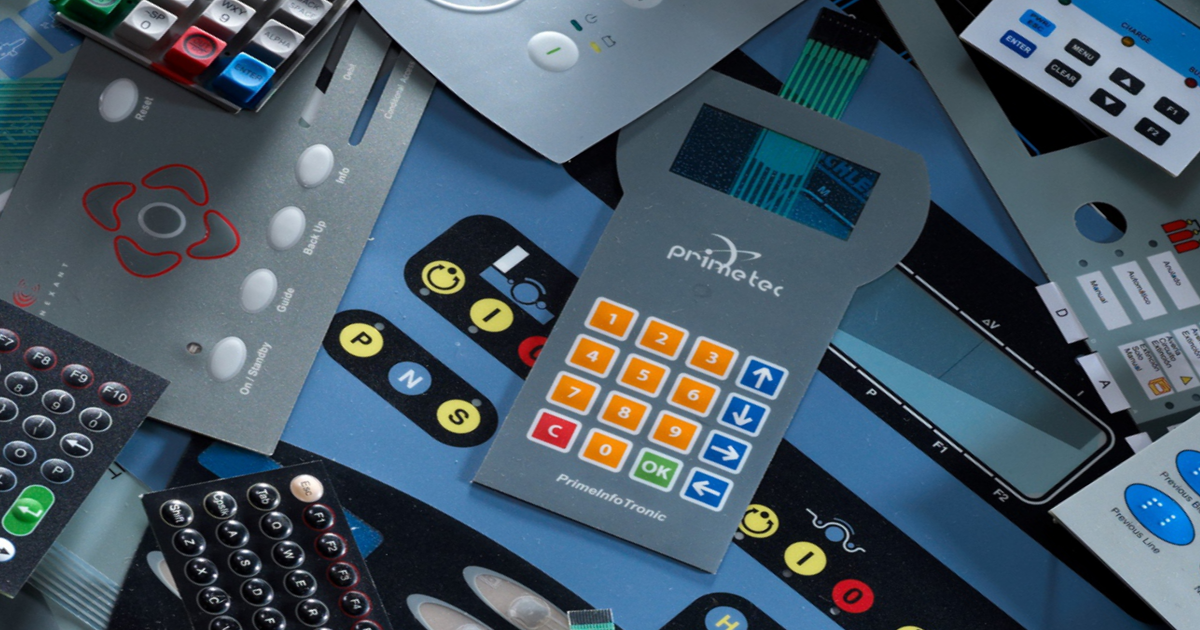

Custom automotive membrane switches are thin, flexible, multi-layered electronic user interfaces specifically engineered for the demanding environments of modern vehicles (such as cars, trucks, motorcycles, and off-road...

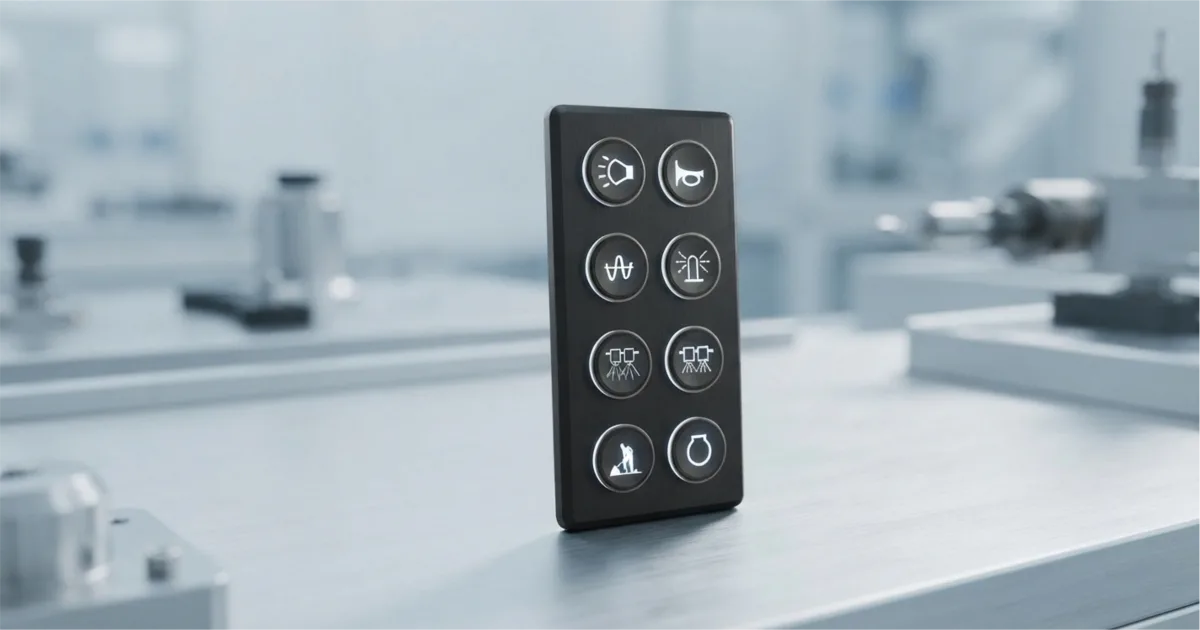

Custom automotive membrane switches are slim, layered electronic interfaces built to operate specific vehicle functions. Instead of bulky mechanical buttons, they use printed conductive circuits and pressure pads. These keypads are tailored to a vehicle's exact dash or panel layout, offering reliable, weather-proof, and low-profile control.
Key Features & Construction
Custom automotive membrane switches typically consist of four functional layers, making them highly versatile for vehicle environments.
· Graphic Overlay: The top visible layer can be custom printed with brand logos, icons, and text. It serves as a seal against dust, dirt, and moisture.
· Spacer & Adhesive Layer: Separates the graphic overlay from the circuit until you press down. It provides IP-rated environmental sealing (like IP67 for water and splash resistance).
· Circuit Layer: Uses silver or carbon conductive traces printed on flexible polyester or rigid PCB material.
· Tactile Domes: Thin metal or polyester domes are often embedded underneath the graphics to give the user a physical "click" response when pressed.
Why They Are Used in Vehicles
Automotive engineers and custom builders prefer membrane switches over traditional mechanical keys for several reasons.
· Space-Saving & Lightweight: Their ultra-thin, flat profile fits seamlessly into compact vehicle spaces where bulky mechanical toggles won't go.
· Design Flexibility: They can be curved, molded, and sized to fit unique interior surfaces or dashboard pods.
· Enhanced Lighting: Backlighting with LEDs or fiber optics can be integrated directly into the switch for easy operation in the dark.
· Durability: They are built to withstand extreme automotive environments, usually rated for temperatures ranging from -40°C to 85°C and capable of 1 to 10 million presses
Keetronics (India) Pvt. Ltd. is a highly reputable manufacturer of advanced input devices and customized Human-Machine Interfaces (HMIs). Based in Pune, Maharashtra, they specialize in rugged, industrial-grade keyboards, control panels, and membrane switches ideal for Special Purpose Machine (SPM) operator consoles and harsh operating environments.
Keetronics manufactures specialized, high-durability keyboards and keypads designed to integrate seamlessly into SPM console panel board assemblies:
· User-Programmable Keyboards:
o Equipped with onboard non-volatile EEPROM storage to store key codes and macro sequences directly on the hardware (driver-free plug & play).
o Features like physical keylocks (to restrict access levels to operators or supervisors) and relegendable keycaps make them ideal for specialized console layouts.
· Smart Programmable Keyboards:
o Powered by 32-bit ARM Cortex processors.
o Supports dynamic, command-driven per-key RGB backlighting (e.g., flashing red for machine errors, green for ready status).
o Features direct protocol support (CAN bus, Modbus, RS485) to communicate directly with PLCs without external gateways.
· Customized Industrial Keyboards:
o Available in materials like brushed stainless steel (vandal-proof), anodized aluminum, or chemically-resistant silicone rubber overlays.
o Can be built with integrated pointer options like optical trackballs (featuring liquid drainage channels) or high-resolution capacitive touchpads.
o IP65 to IP68 sealing to resist dust, oils, grease, and water washdowns.
· Membrane Keypads & Switches:
o Flexible, PCB-based, tactile, and non-tactile custom membrane overlays.
o Gold-plated metal dome keys ensuring long lifecycle operations (often rated up to 10+ million cycles).
Keetronics (India) Pvt. Ltd. is a pioneering Indian manufacturing company specializing in advanced electronics, custom Human-Machine Interface (HMI) solutions, and input devices. Established in 1994, the company has over 32 years of industry experience and has completed more than 7,000 projects globally.
Keetronics designs, develops, and manufactures high-quality custom interfaces and automation hardware, including:
- Industrial Input Devices: PCB & PCF membrane switches, rugged customized computer keyboards, and metallic industrial keyboards.
- HMI & Displays: Customized rugged industrial touch displays and HMI solutions tailored for harsh environments.
- Smart Automation: Smart touch switches for homes, offices, and hotels, alongside custom embedded solutions.
- Specialized Industries: High-reliability input devices engineered specifically for defense, military, aerospace, medical, and marine applications.
