Explosion-proof (or intrinsically safe) keyboards are ruggedized input devices engineered to prevent sparks or excessive heat, ensuring safe operation in hazardous environments with explosive gases, vapors, or dust. The...

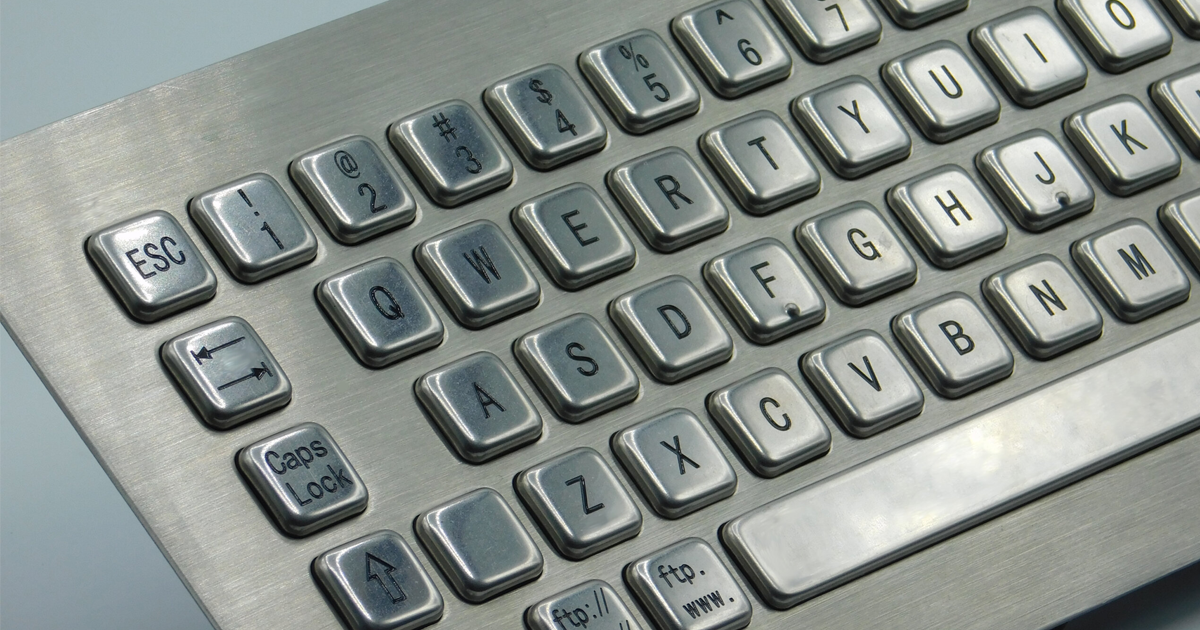

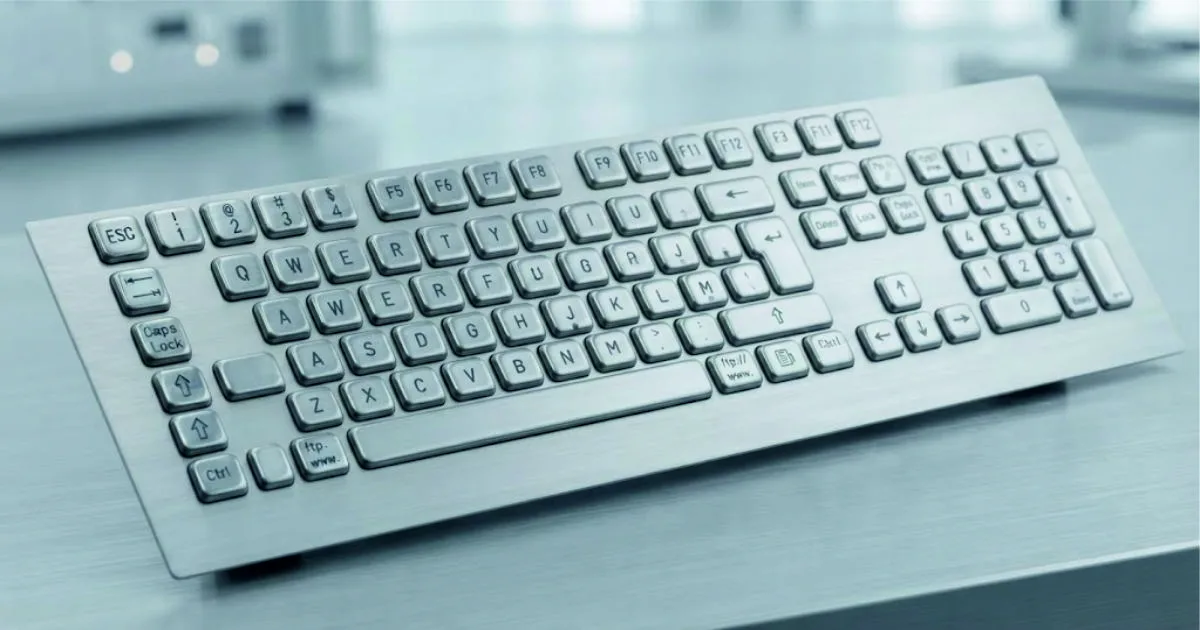

An Explosion-Proof Keyboard (often designated as Intrinsically Safe) is a specialized input device engineered safely for use in hazardous environments where flammable gases, vapors, liquids, or combustible dusts are present.
Unlike standard keyboards, which can generate tiny electrical sparks or heat capable of igniting an explosive atmosphere, explosion-proof keyboards are built to completely eliminate the risk of ignition.
How Do They Work? (The Engineering)
To understand how they work, it helps to look at the two primary design methodologies used to make an industrial keyboard explosion-proof:
-
Intrinsically Safe (Ex i): This is the most common approach. The keyboard is designed to operate on extremely low voltage and current. Even if a wire breaks or a short circuit occurs inside the keyboard, the electrical energy is simply too low to generate a spark hot enough to ignite the surrounding atmosphere.
-
Flameproof / Explosion-Proof Enclosure (Ex d): In this method, the keyboard components are housed inside a heavy-duty, tightly sealed enclosure. If an internal electrical arc or minor explosion does happen inside the keyboard, the casing is strong enough to contain the blast and cool the escaping gases so they cannot ignite the external hazardous environment.
Hazard Classifications & Ratings
Explosion-proof equipment is strictly regulated and classified by international standards like ATEX (Europe), IECEx (Global), and NEC/NFPA (North America). They are typically rated by "Zones" or "Divisions":
-
Class I, Division 1 / Zone 0 & 1: Environments where flammable gases or vapors are continuously present or likely to exist during normal operations (e.g., inside an oil storage tank).
-
Class I, Division 2 / Zone 2: Environments where flammable hazards are only present under abnormal conditions or equipment failure.
-
Class II (Groups E, F, G): Environments containing combustible dusts like grain, coal, or metal powder.
Core Specifications to Look For
| Feature | Requirement | Why It Matters |
| Certifications | ATEX, IECEx, or UL Class I Div 1/2 | Legal compliance; guarantees the device has passed rigorous safety blast testing. |
| Material Build | Non-sparking Stainless Steel or Anti-static Silicone | Prevents static electricity buildup, which itself can cause a spark. |
| Pointing Device | Fully sealed Touchpad or Optical Trackball | Moving parts must not create friction heat or have open gaps where explosive dust can settle. |
| Wiring | Isolated barrier connections | Often requires an external "isolating barrier" between the keyboard and the PC to regulate the electrical power flowing into the hazardous zone. |
Common Industries & Applications
These specialized devices are mandated by safety laws in specific sectors:
-
Oil & Gas Refineries: Used on offshore drilling rigs and processing plants where methane or petroleum vapors are constant risks.
-
Chemical Processing Plants: Environments handling highly volatile compounds or hydrogen gases.
-
Pharmaceutical Manufacturing: Cleanrooms that utilize flammable solvent vapors for chemical synthesis.
-
Grain Elevators & Flour Mills: Facilities where dense clouds of organic dust are highly explosive if exposed to a spark.
