Industrial keyboard assembly

Unlike standard consumer keyboards, which use simple plastic components vulnerable to dust and liquids, an industrial keyboard assembly is built in layers with highly durable materials to ensure continuous reliability in factories, medical labs, marine environments, and outdoor kiosks.

Key Components of the Assembly

An industrial keyboard is typically assembled using a multi-layer stack designed for maximum protection and durability:

• Top Surface / Keypad Layer:

  • Silicone Rubber: A single molded piece of silicone that forms a seamless, water-tight barrier over the switches.

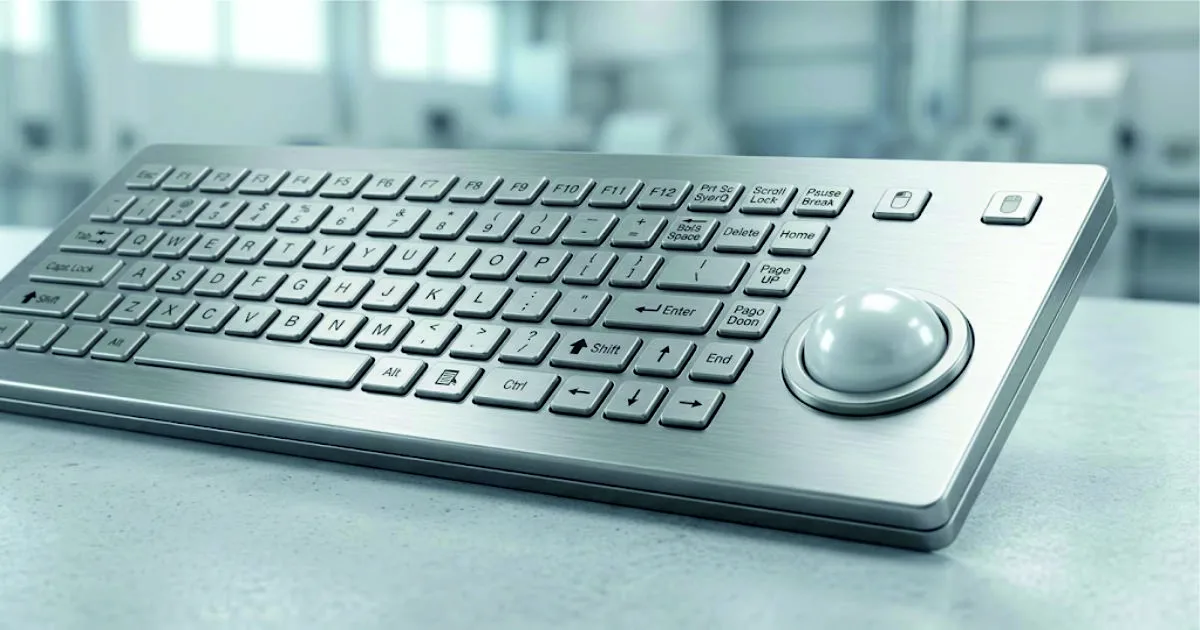

  • Stainless Steel: Heavy-duty metal plates where individual vandal-proof steel keys are mechanically retained.

  • Membrane / Foil: A flat, sealed polyester layer that is completely flat and easy to wipe down (ideal for medical environments).

• The Switch Matrix (PCB): Below the keys sits the Printed Circuit Board (PCB). Instead of fragile membrane sheets found in cheap office keyboards, industrial assemblies use heavy-duty PCBs with gold-on-gold, carbon, or rugged mechanical switches designed for millions of actuations.

• Rigid Backplate: A solid aluminum or stainless steel plate supports the PCB from underneath, absorbing heavy impacts, vibrations, and structural stress.

• Sealing Gaskets: High-performance rubber or foam gaskets seal the edges of the assembly to achieve ingress protection ratings like IP65, IP67, or IP68 (making them completely dust-tight and waterproof).

Key Components of the Assembly

An industrial keyboard is typically assembled using a multi-layer stack designed for maximum protection and durability:

• Top Surface / Keypad Layer:

  • Silicone Rubber: A single molded piece of silicone that forms a seamless, water-tight barrier over the switches.

  • Stainless Steel: Heavy-duty metal plates where individual vandal-proof steel keys are mechanically retained.

  • Membrane / Foil: A flat, sealed polyester layer that is completely flat and easy to wipe down (ideal for medical environments).

• The Switch Matrix (PCB): Below the keys sits the Printed Circuit Board (PCB). Instead of fragile membrane sheets found in cheap office keyboards, industrial assemblies use heavy-duty PCBs with gold-on-gold, carbon, or rugged mechanical switches designed for millions of actuations.

• Rigid Backplate: A solid aluminum or stainless steel plate supports the PCB from underneath, absorbing heavy impacts, vibrations, and structural stress.

• Sealing Gaskets: High-performance rubber or foam gaskets seal the edges of the assembly to achieve ingress protection ratings like IP65, IP67, or IP68 (making them completely dust-tight and waterproof).

Common Assembly Mounting Styles

Depending on how they will be used in a factory or machine, these assemblies generally fall into three categories:

1. Panel Mount: Designed to be bolted or clamped directly into a cutout on a kiosk front, machine control console, or workstation panel from the front or rear.

2. Desktop / Enclosed: A fully sealed standalone unit housed in a rugged enclosure (often aluminum or stainless steel) that can sit on a desk or be mounted on an arm.

3. OEM / Open-Frame: Supplied as a bare, fully functional module without an outer bezel, allowing engineers to integrate it directly behind custom machinery faceplates.

Why Industrial Assembly Matters

A standard keyboard will quickly short-circuit or wear out when exposed to grease, water, dust, or extreme temperatures. An industrial keyboard assembly ensures that every point of entry is completely sealed against contaminants, allowing operators to safely type even while wearing thick industrial gloves or using harsh chemical cleaners
