Numerical Control Machine Keyboard

Key Layout and Functional Zones

A CNC keyboard is typically divided into three dedicated operational zones to help operators manage tasks efficiently and safely:

• Program Commands & Data Entry: This zone features alphanumeric keys used to input, edit, or modify G-code and M-code programs directly on the machine. It also includes navigation keys to scroll through lines of code.

• Feed & Speed Overrides: Crucial for safety and precision, this area often contains physical rotary dials or tactile buttons. They allow the operator to adjust the Feed Rate Override (FRO) or spindle speed on the fly if the machine vibrates or a tool shows signs of wear.

• Jog Controls: These are manual directional buttons (X, Y, Z, and sometimes A, B, C axes) that let the operator physically move the machine's cutting head or table when setting up a workpiece, bypassing the software.

Industrial Durability Features

Because they operate surrounded by flying metal chips, abrasive dust, cutting oil, and heavy vibrations, their engineering is completely different from consumer electronics:

• Sealed Membrane Construction: Most industrial panels use a flat membrane or sealed tactile push-buttons (often rated IP54 to IP65). This prevents liquids, fine dust, and coolants from seeping into the circuitry and causing shorts.

• Chemical and Wear Resistance: The key faces are typically made from heavy-duty ABS or specialized polyester/polycarbonate overlays that resist degrading when exposed to harsh industrial solvents, grease, and cutting fluids.

• Direct PLC/HMI Interfacing: Instead of standard USB or Bluetooth, many traditional CNC keyboards use specialized ribbon cables or industrial communication protocols to talk directly to the machine's Programmable Logic Controller (PLC) or Human-Machine Interface (HMI).

Common Industrial Brands

If you are looking at a CNC keyboard for maintenance or replacement, they are usually proprietary and specific to the machine's controller brand. Some of the most widely used systems include:

• Fanuc: Renowned for high reliability in mass production environments.

• Siemens (SINUMERIK): Popular for highly complex, multi-axis machining profiles.

• Mitsubishi & Delem: Frequently found in specialized machinery like CNC press brakes and wire EDMs.

Keetronics India is a prominent manufacturer specializing in custom Human-Machine Interface (HMI) solutions, industrial automation inputs, and heavy-duty keyboards often deployed on numerical control (NC/CNC) machinery.

Instead of off-the-shelf components, Keetronics builds rugged control interfaces tailored to survive the grease, coolants, and heavy vibrations of manufacturing setups.

Relevant Technology Offerings for NC/CNC Input

Keetronics manufactures several types of technologies that align with the rigorous requirements of Numerical Control systems:

• Tactile Metal Dome Keyboards: Their KT-series (like the KT-41 and KT-67) features built-in glass epoxy PCBs and gold-plated metal domes. These are favored for CNC panels because they provide explicit, crisp mechanical feedback so machinists know a button has registered even while wearing heavy gloves.

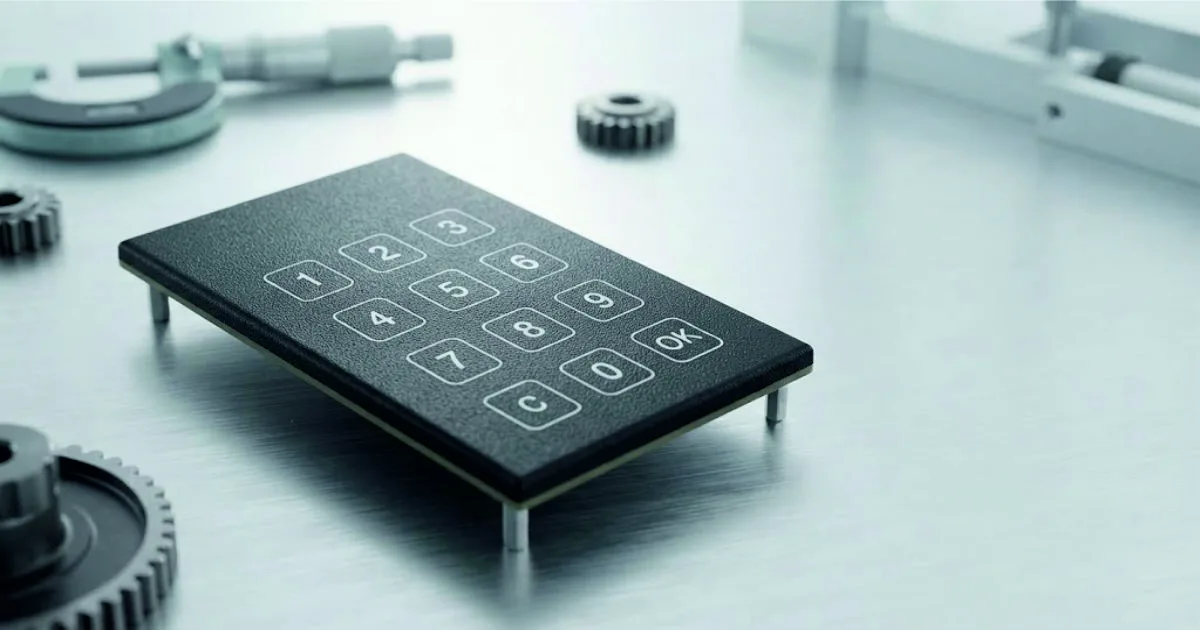

• Capacitive Touch Keypads: For modern CNC applications looking to minimize wear and tear, their capacitive overlays (such as the KC43 series) use completely sealed glass or PMMA surfaces. This completely eliminates mechanical degradation from dust ingress or fluid splashes.

• Vandal-Resistant & Metallic Keyboards: For high-impact industrial settings, they offer stainless steel keyboards featuring chemically etched lettering that will not fade under repeated abrasive scrubbing or exposure to industrial solvents.

Key Engineering Features for Machine Environments

When integrated into NC or CNC machine control panels, Keetronics inputs typically utilize the following characteristics:

• Ingress Protection (IP54 to IP67): Sealed surfaces block oil, fine metal shavings, and cooling liquids from reaching the internal electrical paths.

• Flexible Industrial Protocols: Support for raw TTL matrix outputs, as well as digital communication methods like SPI, $\text{I}^2\text{C}$, and UART to interface directly with custom PLCs or machine control boards.

• Optimized Key Pitch: Designed with specific layouts to prevent operators from hitting multiple keys accidentally during critical operations (such as tool-jogging or emergency feed adjustments).
