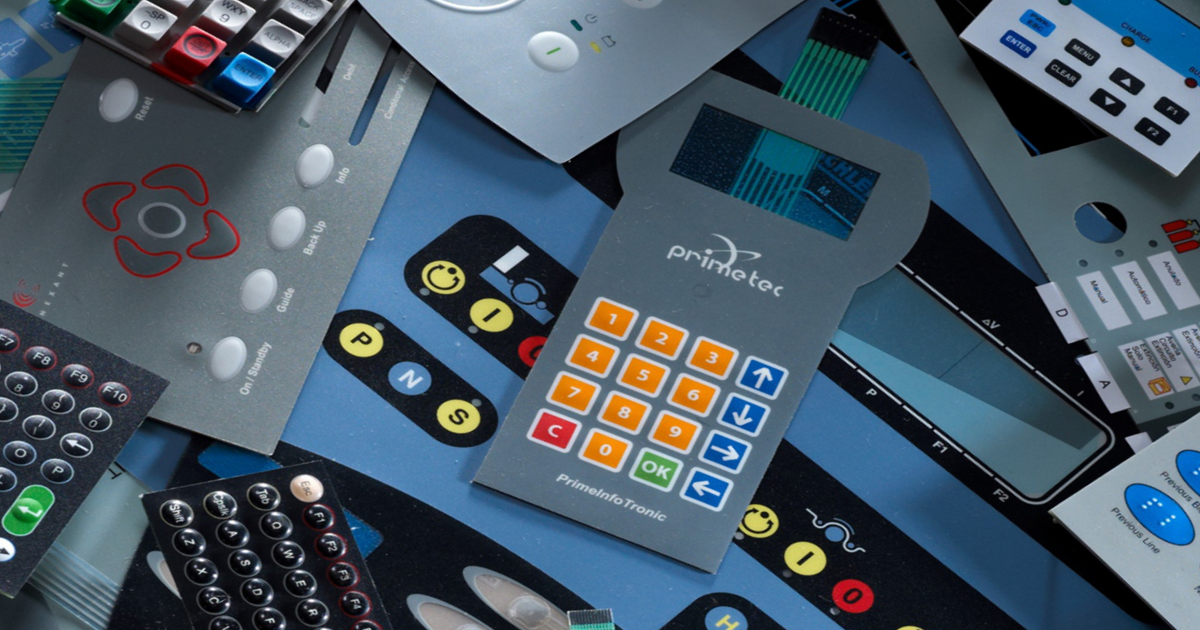

A vibration-resistant membrane keypad is a specialized, flat-surface electronic input interface engineered to endure continuous mechanical shaking, high-frequency oscillations, and heavy impacts without breaking electri...
A vibration-resistant membrane keypad is a highly specialized, flat-surface electronic input interface engineered specifically to endure continuous mechanical shaking, high-frequency oscillations, and heavy impacts. Unlike standard mechanical switches that rely on moving parts which can snap or dislodge, these keypads use a low-profile, multi-layered design to maintain absolute electrical contact in harsh environments.
How Vibration-Resistant Keypads Work
Because mechanical keys can suffer from structural fatigue or loose pins under intense movement, vibration-resistant designs rely on integrated material and structural choices to stay functional:
- Flat, Layered Construction: They are composed of thin, flexible layers—typically a graphic overlay, spacer layers, and a flexible circuit. This flat footprint eliminates tall keys that could sheer or break under stress.
- Highly Flexible Base Materials: Industrial manufacturers typically select highly flexible base films like Polyester (PET) or Polycarbonate (PC). PET has excellent mechanical strength and can tolerate constant vibration-induced bending without cracking or warping.
- Secure Industrial Adhesives: High-strength adhesives (such as 3M VHB tapes) are used to laminate the layers together. This prevents the layers from peeling apart, separating, or letting moisture creep in when subjected to rapid movement.
- Tactile Metal Domes with Low Bounce: If tactile feedback is required, integrated metal domes are engineered to minimize electrical "bounce," ensuring a clean connection even during violent shaking.
Key Benefits
- No Moving Parts to Fail: Eliminates mechanical key assemblies that can rattle loose or experience wear over time.
- Hermetic Sealing: Easily complies with IP65, IP67, or IP68 standards, keeping out water, dust, oils, and chemical solvents.
- Compact Space Savings: Their ultra-slim profile is ideal for tightly packaged control consoles.
Common Applications
These rugged interfaces are standard components in industries where equipment is subject to constant motion or jarring:
- Military & Aerospace: Cockpit controls, communication arrays, and ruggedized field computers.
- Industrial & Construction: Control panels on heavy machinery, drilling equipment, and manufacturing plant interfaces.
- Transportation: Dashboard controls for trains, maritime vessels, and off-road defense vehicles.
- Medical Equipment: Specialized portable diagnostic systems that undergo frequent transit or high-intensity sterilizations.
Keetronics (India) Pvt. Ltd. is a pioneering Indian manufacturing company specializing in advanced electronics, custom Human-Machine Interface (HMI) solutions, and input devices. Established in 1994, the company has over 32 years of industry experience and has completed more than 7,000 projects globally.
Keetronics designs, develops, and manufactures high-quality custom interfaces and automation hardware, including:

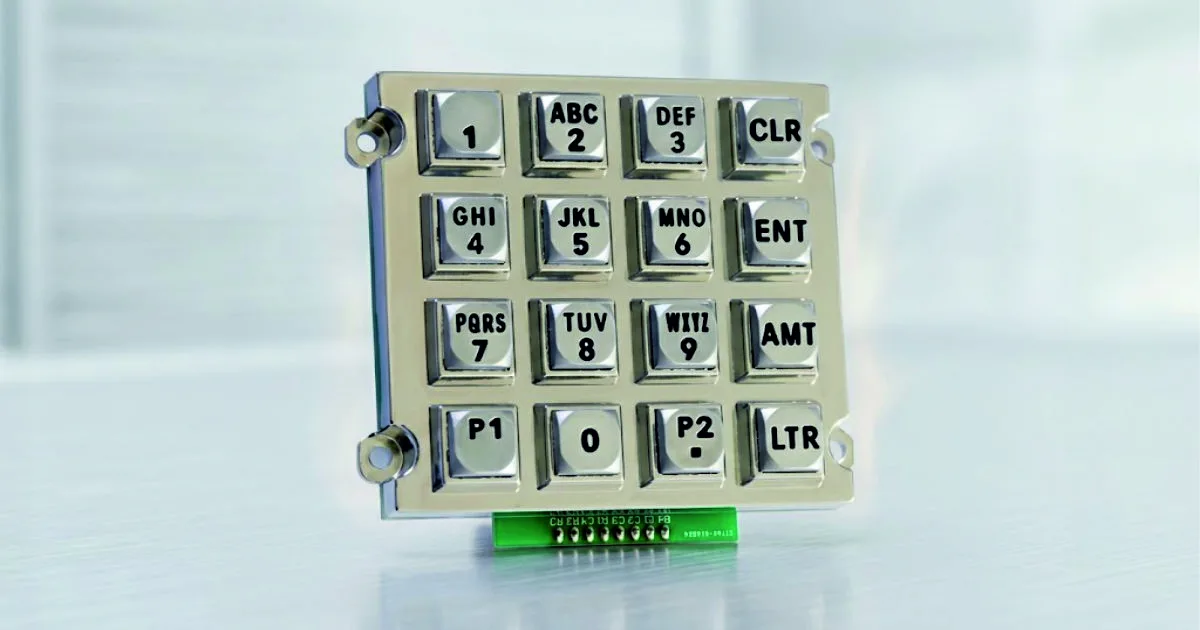

- Industrial Input Devices: PCB & PCF membrane switches, rugged customized computer keyboards, and metallic industrial keyboards.
- HMI & Displays: Customized rugged industrial touch displays and HMI solutions tailored for harsh environments.
- Smart Automation: Smart touch switches for homes, offices, and hotels, alongside custom embedded solutions.
- Specialized Industries: High-reliability input devices engineered specifically for defense, military, aerospace, medical, and marine applications.
Keetronics designs, develops, and manufactures high-quality vibration-resistant membrane keypad
